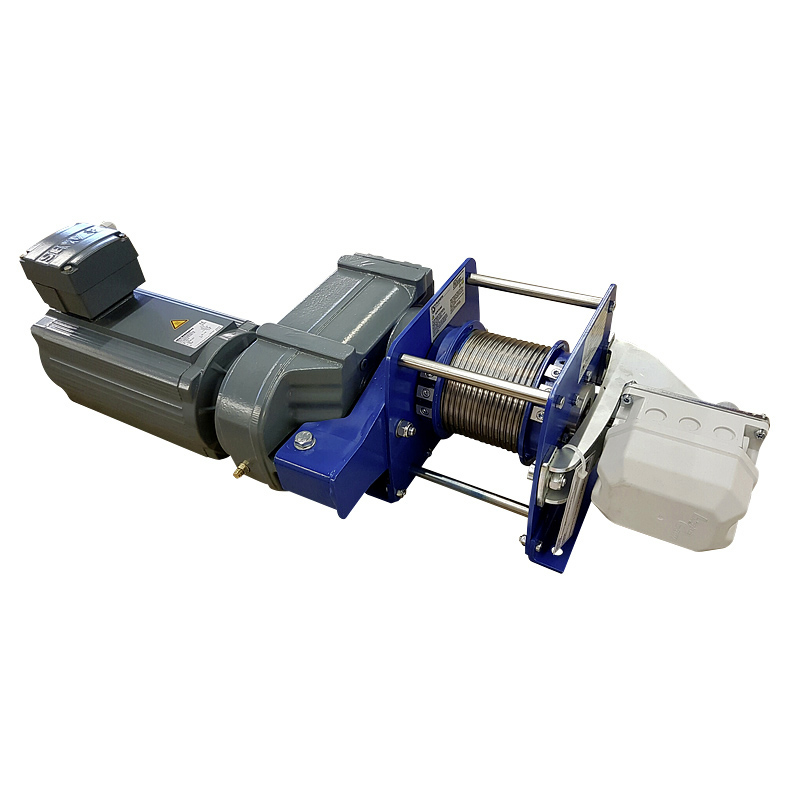

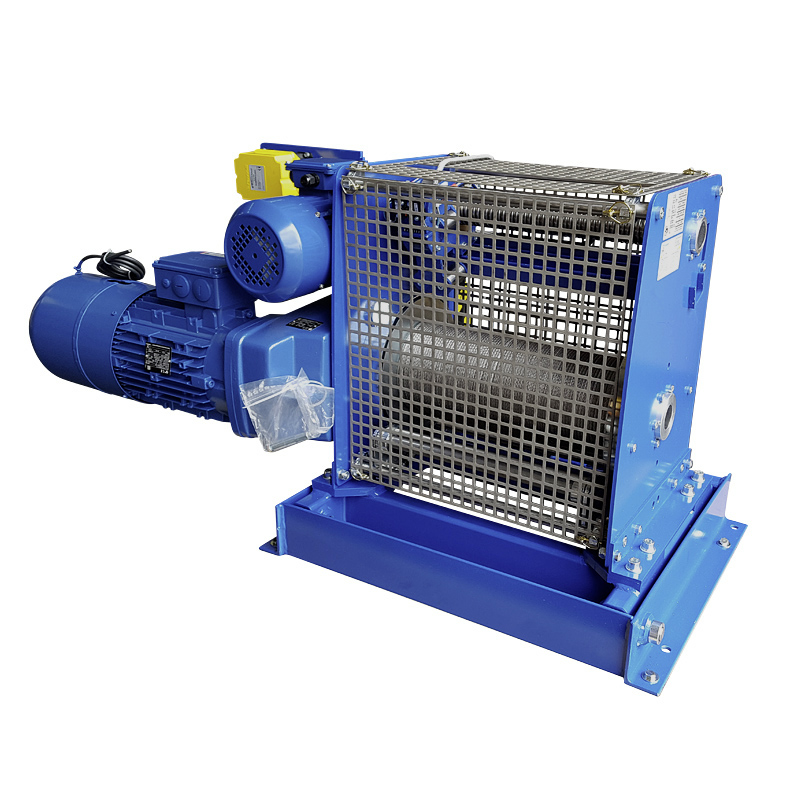

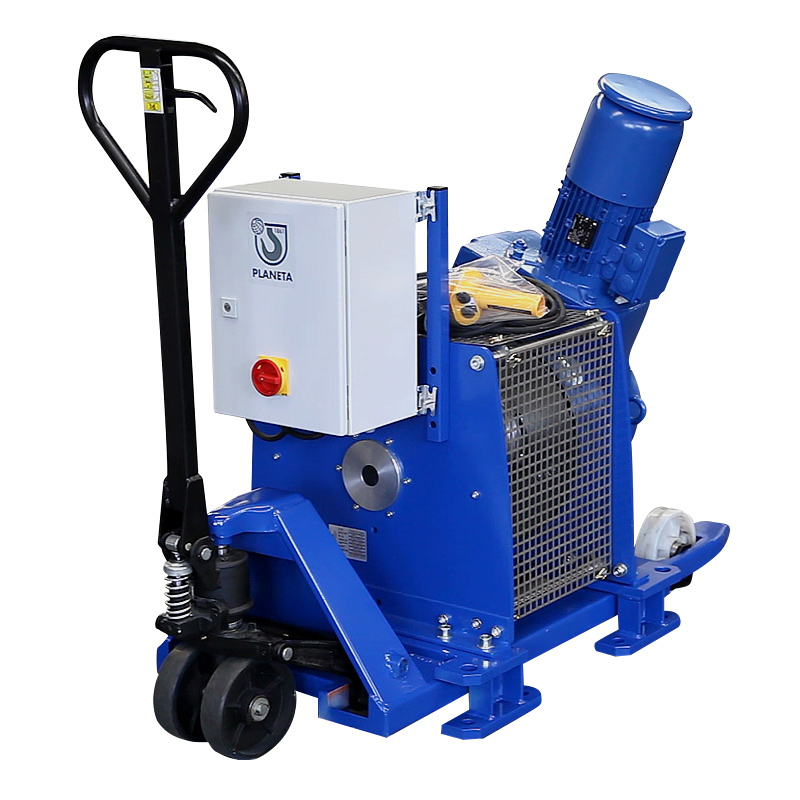

Electric rope winch PFW-E
As a lightweight industrial cable winch, the PFW-E cable winch is the entry-level unit for the custom-built PLANETA solutions for towing, lifting and positioning loads weighing up to 3.000 kg.
The lightweight
Features:
- Capacity from 250 kg up to 3.000 kg
- Spur gear and brake motor
- Single phase or three-phase motor
- Different speeds and rope capacities
- Protection class IP55 – 66, duty cycle 60% – 100%
- Low-maintenance with lifetime lubrication
- FEM classification M3 (1Bm)
Options:
- Rope and hook completely mounted, more rope outflow
- Grooved and longer drum, disengaging clutch
- Protective drum cover and special coatings
- ATEX and entertainment version
Downloads:
Electric rope winch PFW-C
Suitable for many applications and configured with a grooved drum, contactor control with manual control button and mains connector.
The available
Features:
- Capacity from 250 kg up to 2.000 kg
- Grooved drum and contactor control
- Spur gear transmission and braked motor
- Three-phase motors or alternating current motors
- Motor protection IP55, duty cycle 60%
- Low-maintenance with lifetime lubrication
- FEM classification M3 (1Bm)
Options:
- Rope and hook completely mounted
- Drum pressure roller
- Protective drum cover
- End switches
Downloads:

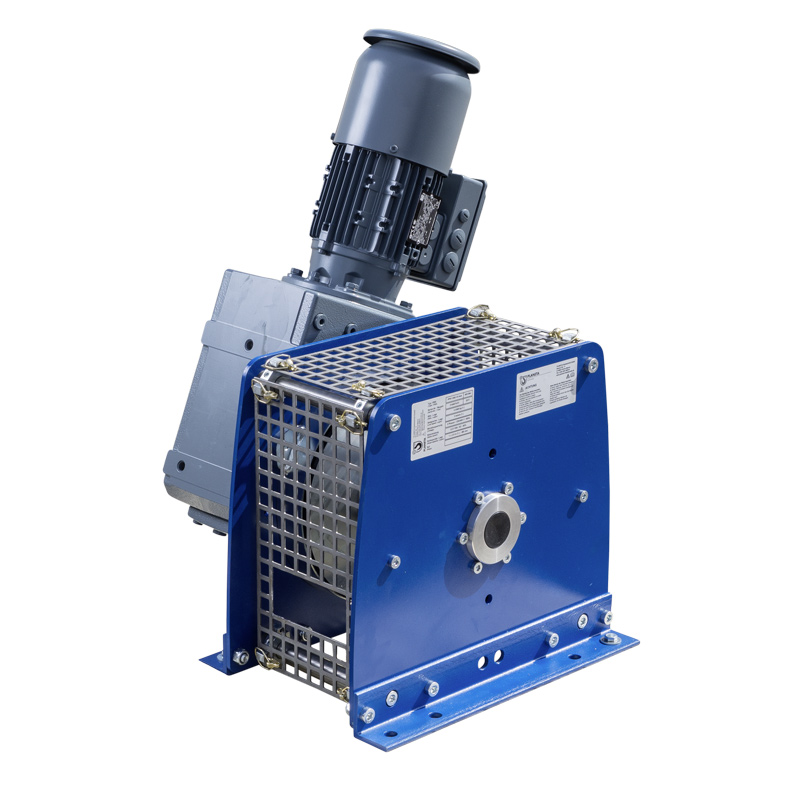

Electric rope winch PKW-E
As a lightweight industrial cable winch, the PKW-E cable winch is the entry-level unit for the custom-built PLANETA solutions for towing, lifting and positioning loads weighing up to 3.000 kg.
The lightweight
Features:
- Capacity from 250 kg up to 3.000 kg
- Spur gear and brake motor
- Single phase or three-phase motor
- Different speeds and rope capacities
- Protection class IP55 – 66, duty cycle 60% – 100%
- Low-maintenance with lifetime lubrication
- FEM classification M3 (1Bm)
Options:
- Rope and hook completely mounted, more rope outflow
- Grooved and longer drum, disengaging clutch
- Protective drum cover and special coatings
- ATEX and entertainment version
Downloads:

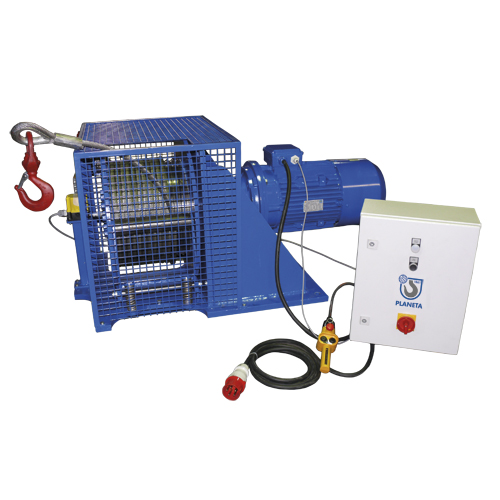

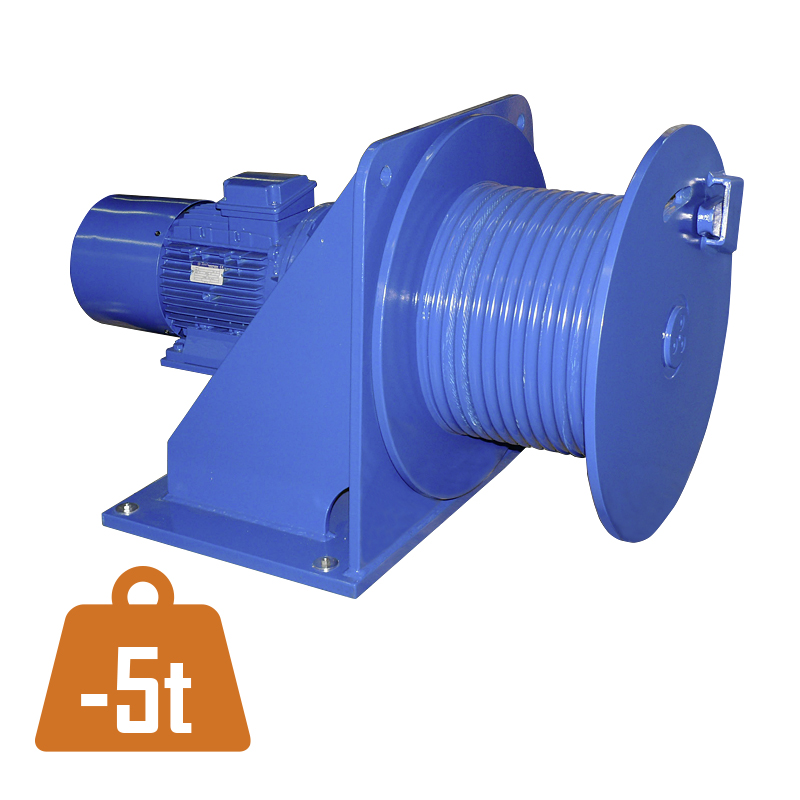

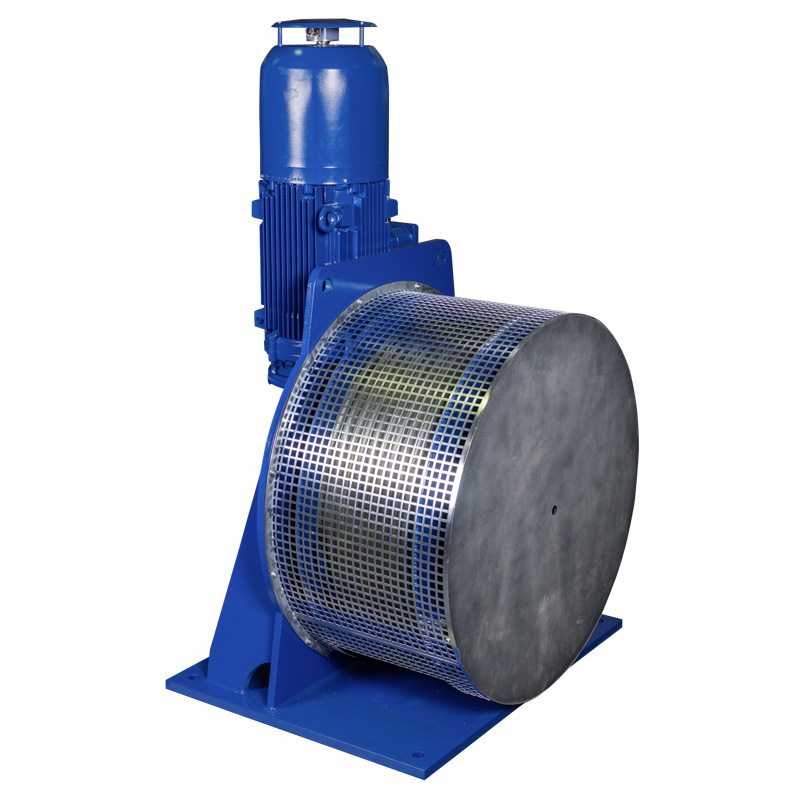

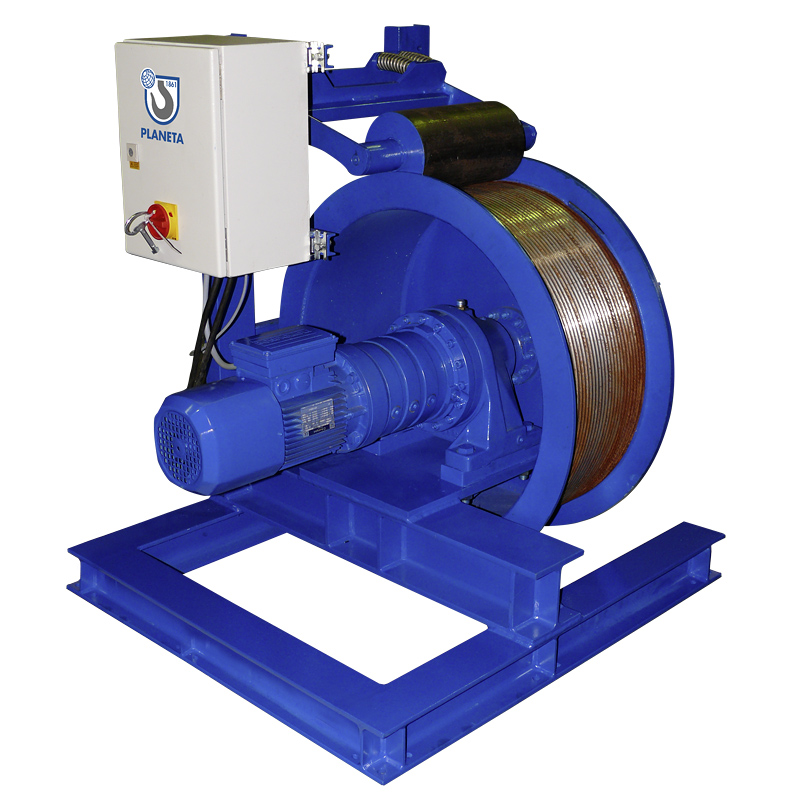

Electric rope winch FD-E
- Capacity from 950 kg up to 5.250 kg
- Heavy duty planetary gearbox and aluminium braked motor
- Single phase or three-phase motor
- Protection class IP54 – 66, duty cycle 60% – 100%
- Compact design
- FEM classification M4 (1Am) or higher
- Rope and hook completely mounted
- Grooved drum
- End switches and drum pressure roller
- Protective drum cover and special coatings
- ATEX versions
Downloads:
Electric rope winch SB-E
The standard build SB type winch provides the basis of the solution to many pulling and lifting winch applications. The winch is constructed in the conventional manner with motor, gearbox and drum in line. When it comes to the need of a shorter design the SB winch is available with a angular gearbox. The choice of the rope complies with the pulling force in the 5th rope layer. The drum is build according classification 1Am. The drum diameter is at least 16-times bigger than the diameter of the indicated rope diameter. Although the name of this winch indicates different, these winches are very suitable to fit to your specific winch application and can be equipped with different drums, other gearboxes or motors. Many options can be offered on these highly versatile winches. The standard version comes without a rope and control.
The all-rounder
Features:
- Capacity from 1.250 kg up to 60.000 kg
- Heavy duty planetary gearbox and aluminium braked motor
- Single phase or three-phase motor
- Protection class IP54 – 66, duty cycle 60% – 100%
- Low-maintenance , open construction
- FEM classification M4 (1Am) or higher
- Frame and drum form a firm, welded structure
Options:
- Rope and hook completely mounted, more rope outflow
- Grooved and longer drum, disengaging clutch
- End switches, slack wire switch and drum pressure roller
- Protective drum cover and special coatings
- ATEX and entertainment version
Downloads:
