Monorail & Retractable Crane System

Application:

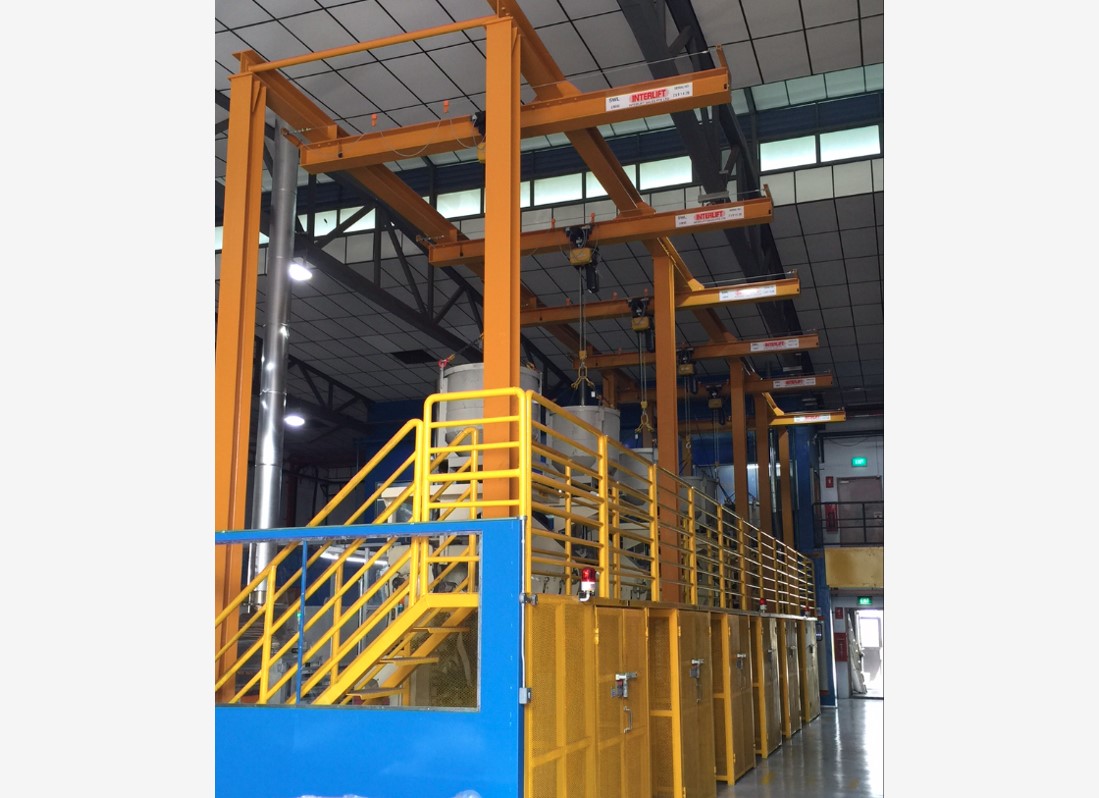

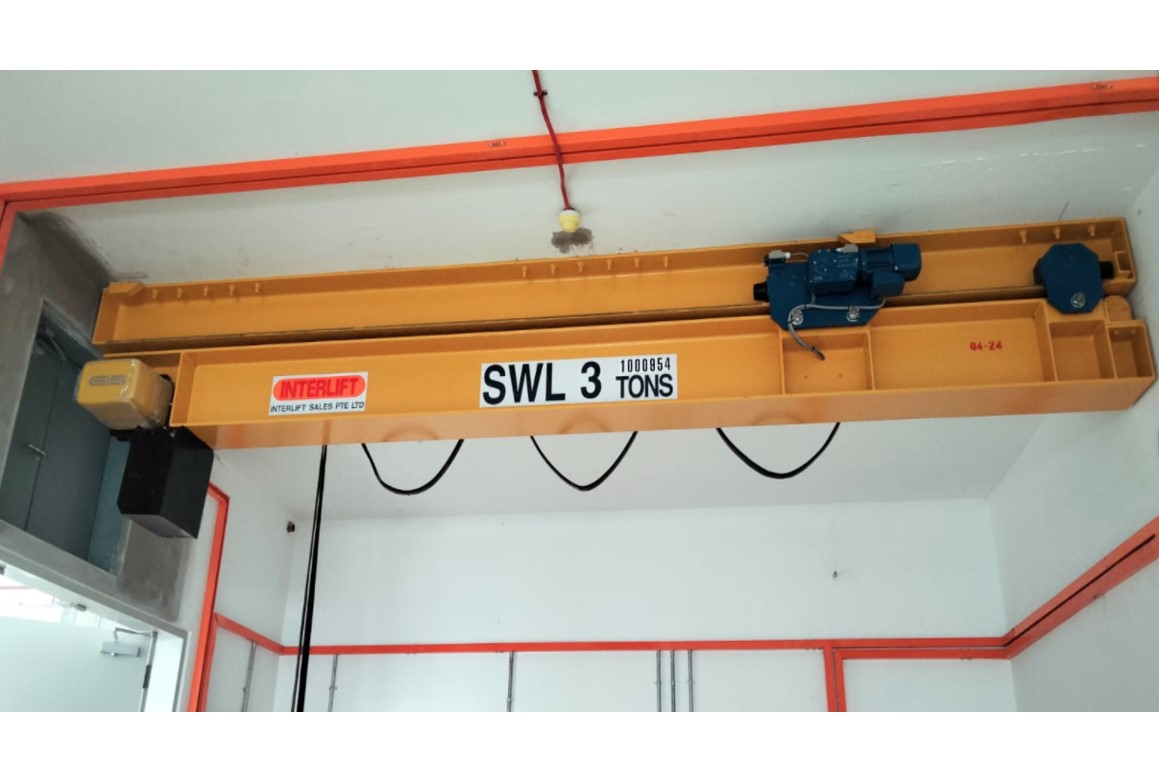

Monorail system is an economical choice for lifting and transporting loads along a fixed path. Monorail structures can be straight or curved sections of I beam, wide flange, or enclosed track shapes. For monorail system, the hoist/ trolley rides on the lower flange of the beam or track. Interlift monorail system may be fitted with fully motorized hoist with push trolley, or fully motorized monorail systems. They are often installed for repetitive production jobs like paint lines, assembly lines, production processes, loading docks, and waste water treatment plants.

Capacity up to  5000 Kg

Features:

• Overload protective device to prevent hoisting of loads exceeding its rated capacity
• Limit switch to prevent overhoisting and overlowering
• Limit switch to prevent overtransversing

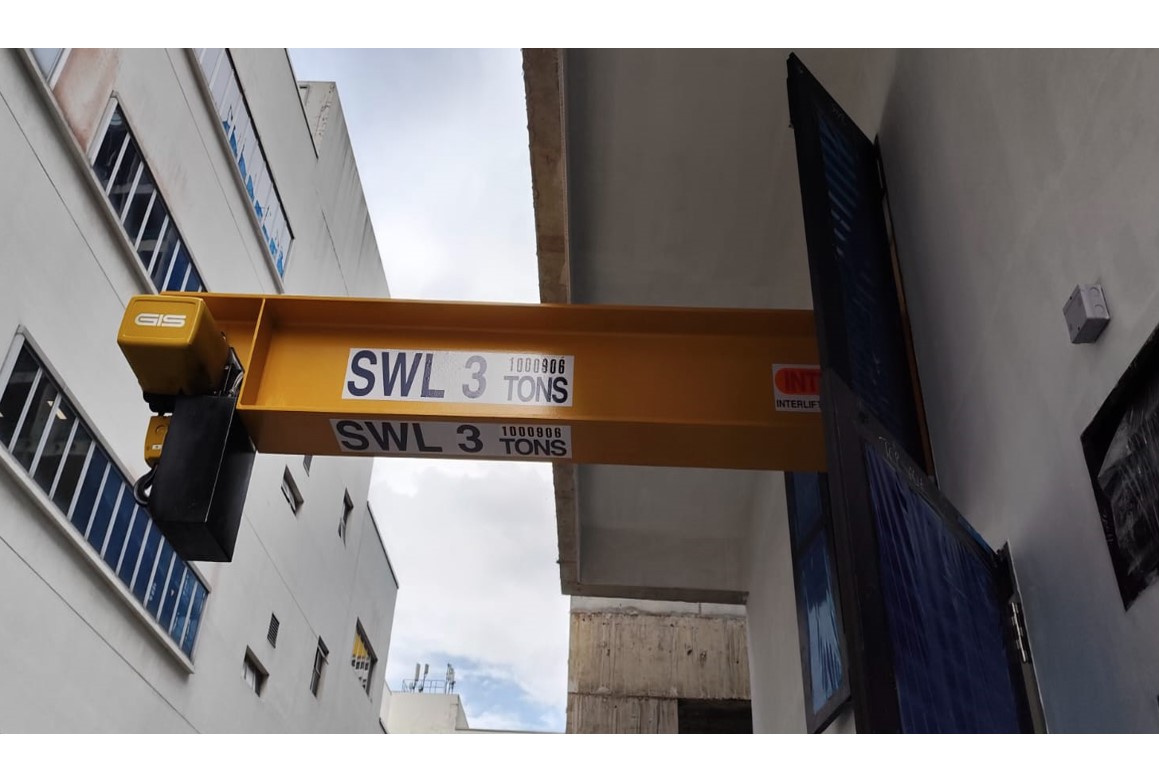

• Limit switch to prevent overtravelling (Retractable beam)
• Safety catch on the hook
• IP 55 protection for all motors
• Flexible flat cable festoon system for cross travel power supply including profile rail track, cable trolleys, rail hangers, rail splices and flat cable
• Push button pendant complete with control cable
• Switchbox for controlling the hoisting and transversing movement
