Goods Hoist & Dumbwaiter

We offer a complete range of Goods Hoists for commercial and industrial use. Interlift Goods hoist is the most reliable solution for moving bulky goods between floors or to elevated storage areas within building such as warehouses, factories and workshops. Our goods hoists are manufactured under the strict supervision of our qualified professionals and thus, appreciated for their sturdy and rugged constructions. We also specialise in customized design and build according to your needs and fitted at your premises. Two basic types of goods hoist are available - Free Standing and Hoist well. The standard design ranges from 500 to 3000 kg and higher capacity can be tailored to your needs.

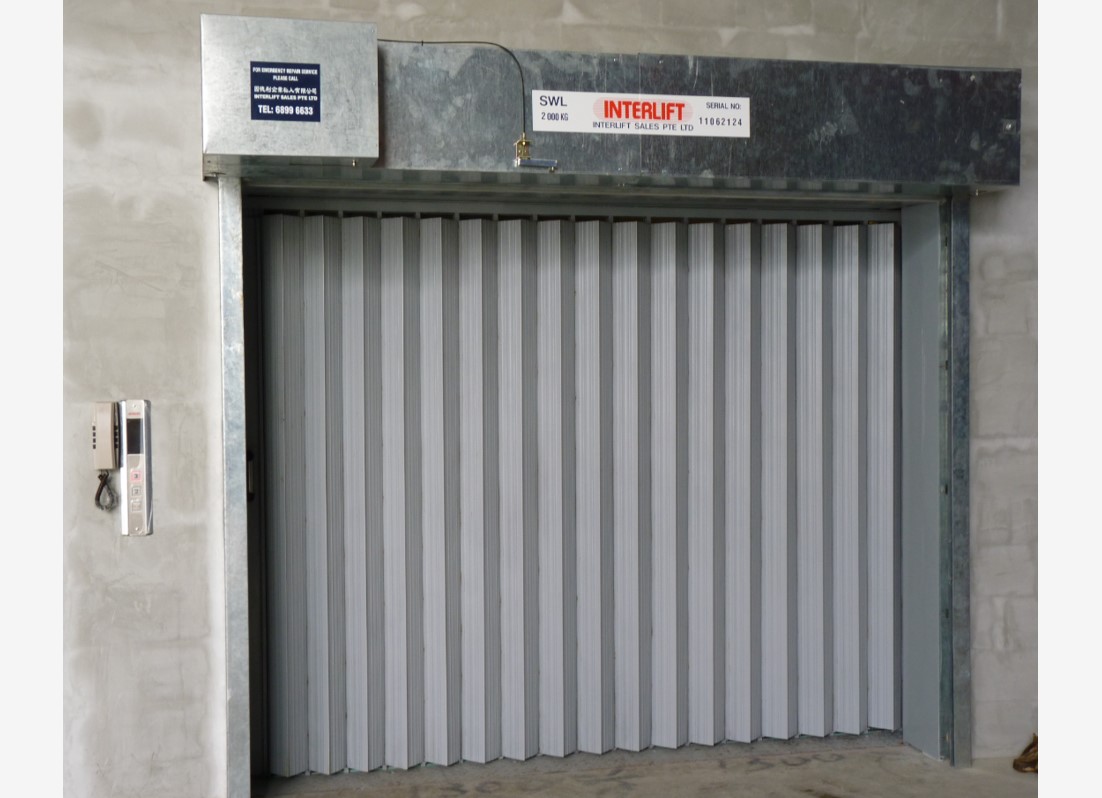

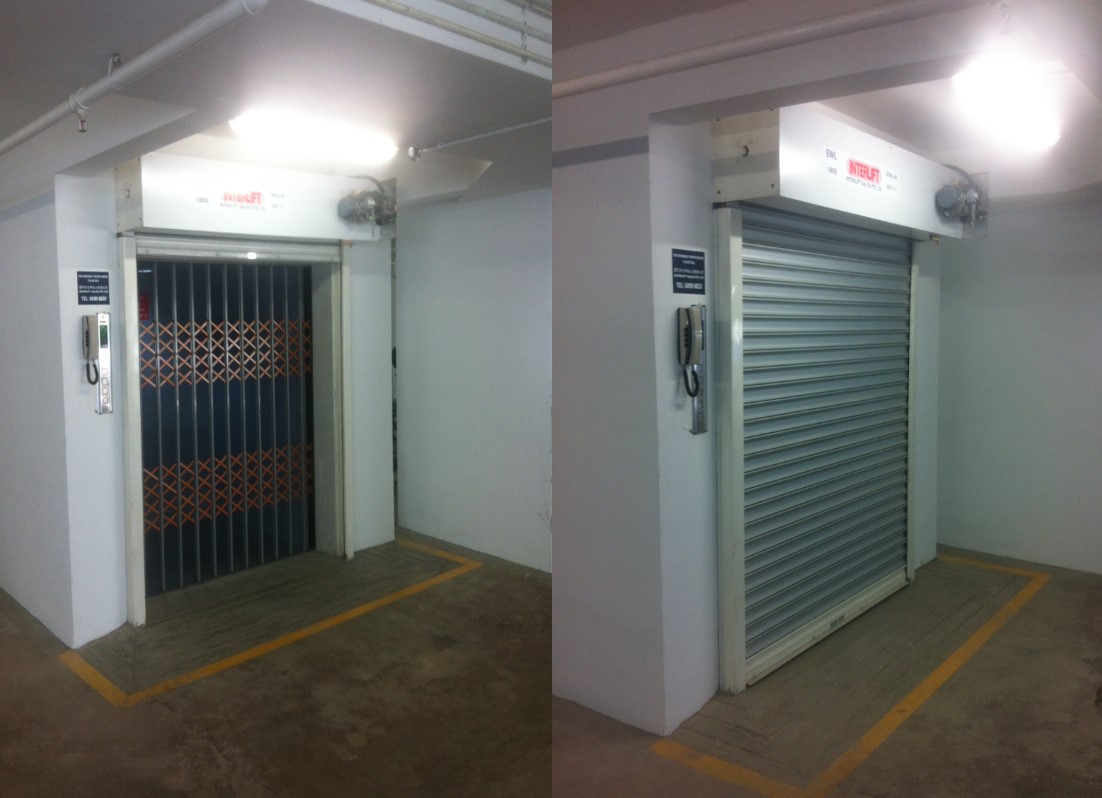

Hoist Well Goods Hoist

Application:

Hoist well. The standard design ranges from 500 to 3000 kg and higher capacity can be tailored to your needs.

Features:

  • Safety Catch Mechanism: To hold the cage onto guide rail from free fall in case the wire rope breaks.
  • Control Limit switches: For precise landing of cage at each level.
  • Electro-mechanical Interlock is installed  to ensure that the landing door do not open when the lift is in operation
  • Overload protection device: To stop the operation of the goods hoist when overload occurred.
  • Final limit Switch: To prevent overhoisitng and overlowering of cage.
  • Automatic brake to operate in case of power failure
  • Emergency Stop Button
  • Alarm Device

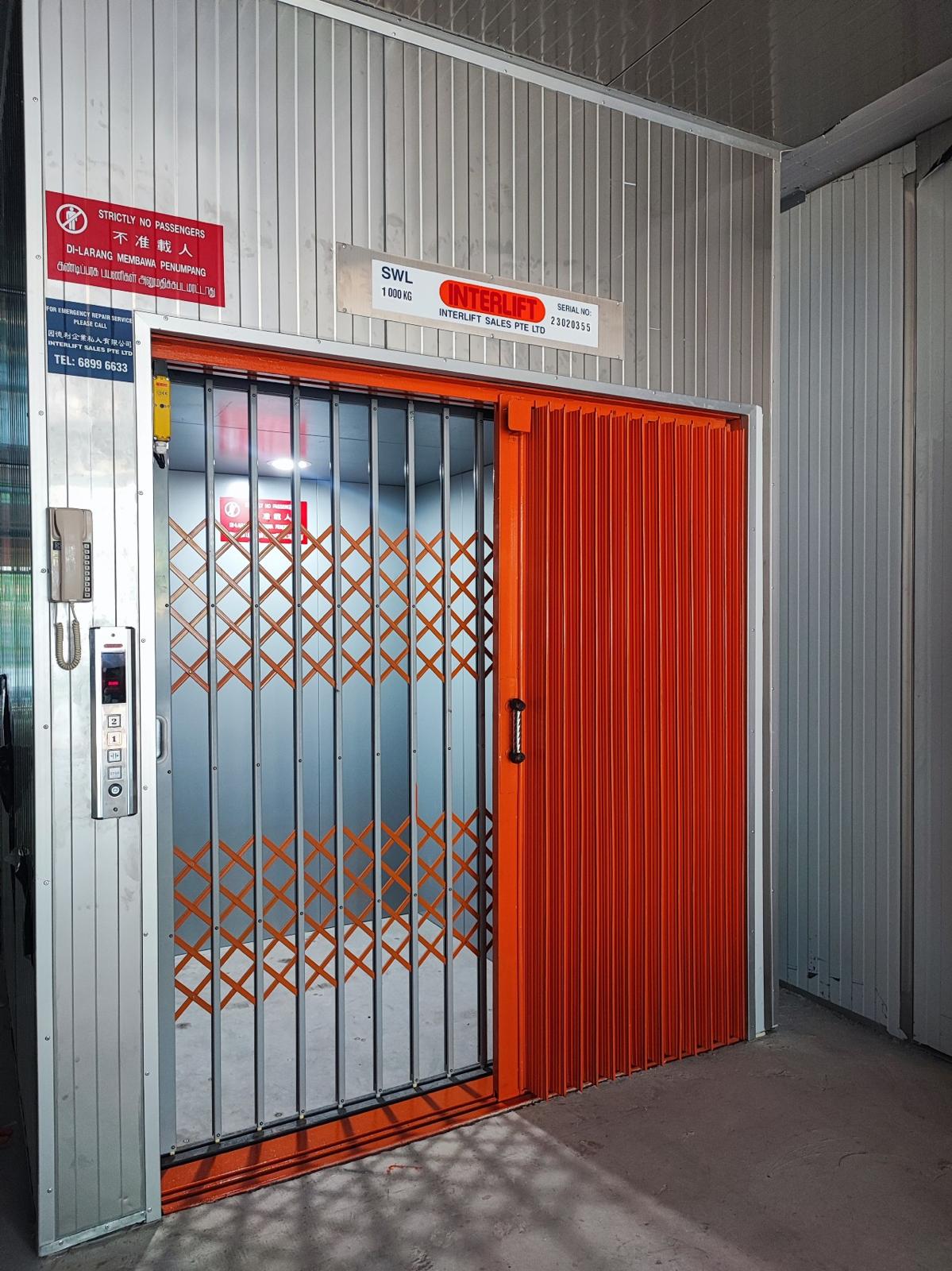

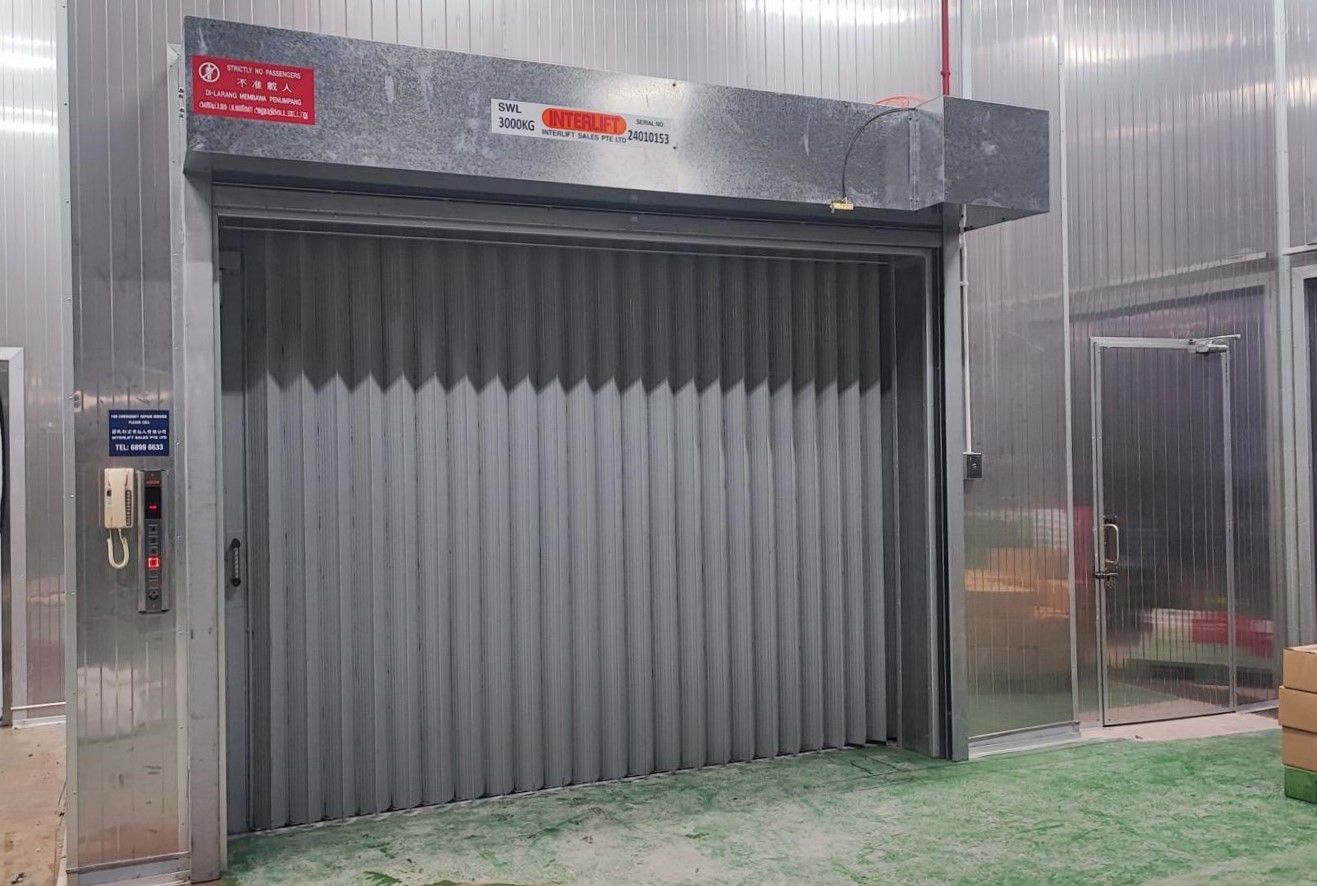

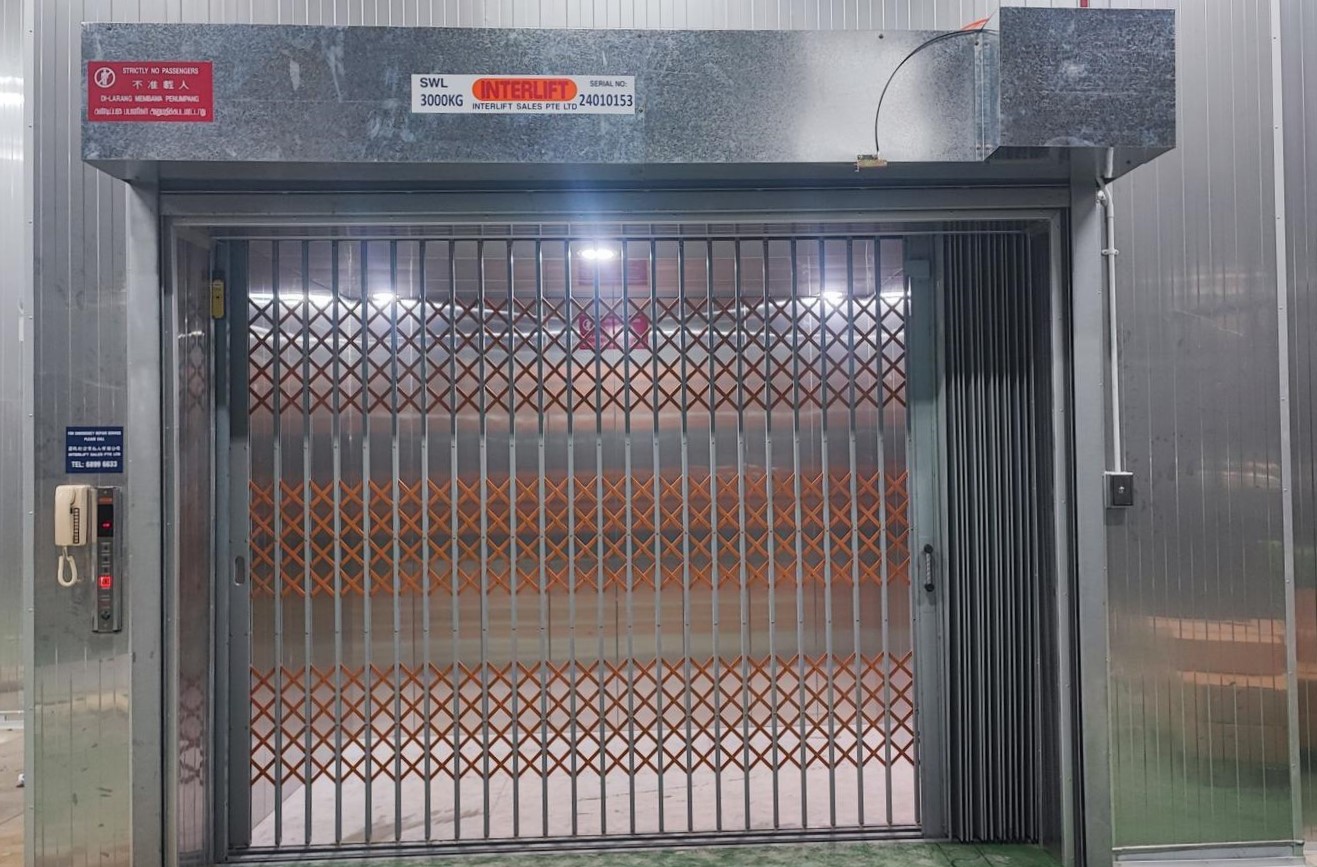

Free Standing Goods Hoist

Application:

Free Standing Goods Hoist can be installed externally or internally to your building, self-supporting without the need for a lift shaft. The standard design ranges from 500 to 3000 kg and higher capacity can be tailored to your needs.

Features:

  • Safety Catch Mechanism: To hold the cage onto guide rail from free fall in case of wire rope snap.
  • Control Limit switches: For precise landing of cage at each level.
  • Electro-mechanical Interlock is installed  to ensure that the landing door do not open when the lift is in operation
  • Overload protection device: To stop the operation of the goods hoist when overload occurred.
  • Final limit Switch: To prevent overhoisitng and overlowering of cage.
  • Automatic brake to operate in case of power failure
  • Emergency Stop Button
  • Alarm Device

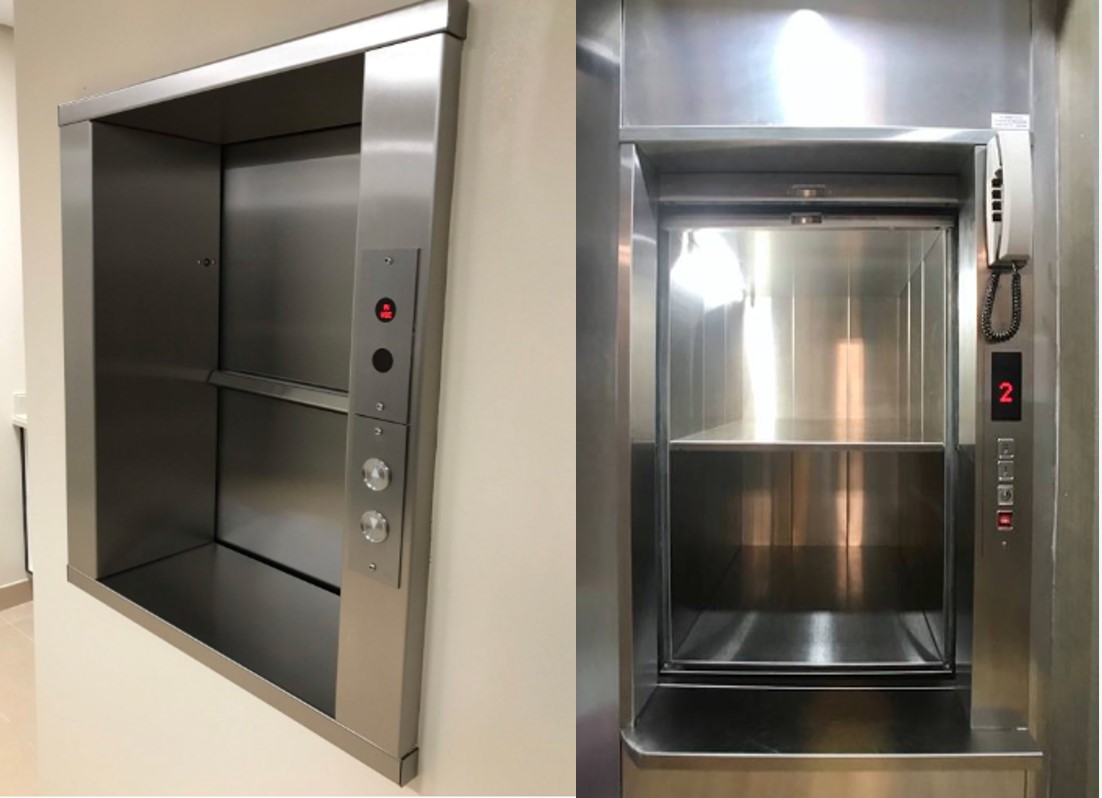

Dumbwaiter

Application:

Dumbwaiters are ideal for busy restaurants, hospital labs and even office building. The ease and speed of moving objects to save time and reduce risk of handling delicate items. Dumbwaiters travel within a hoist-way carrying various objects. The car (the box that carries the load) moves within the hoist-way along a guide rail to keep it in place. Cables and pulleys are generally used to lift and lower the car.

Features:

  • Landing floor indicator
  • Running direction display
  • In-use indicator
  • Hoist way door interlocks: required at each landing
  • Landing notice buzzer
  • Emergency stop switch
  • Phase protection
  • Upper & lower location limits protection
  • Motor overcurrent protection
  • Reinitialize function
  • Overtime running protection
  • Variable frequency motor
  • Overload alarm
  • Extra guardrail for up floor

Send Us An Enquiry

INTERLIFT provides tailored lifting equipment and solutions. Please feel free to contact INTERLIFT regarding a lifting, handling or productivity solution.
